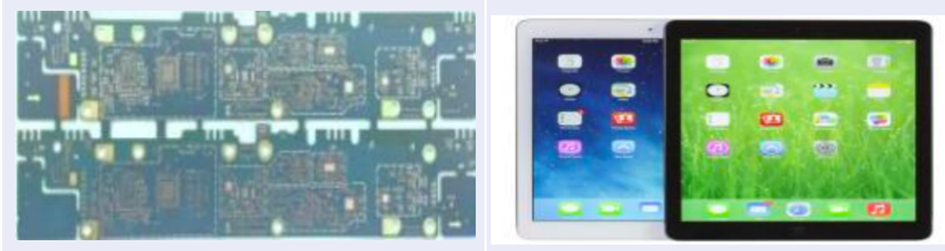

PRODUCT DETAILS
| Layer | 8 |
| Finished Thickness(mm) | 0.8 |
| Material type | S1000H |
| Copper thickness(oz) | ALL 1/1 |
| Minimum aperture (mm) | 0.2 |
| Minimum line width/line spacing (mm) | 0.1 |
| Other characteristics | ENIG+OSP |
