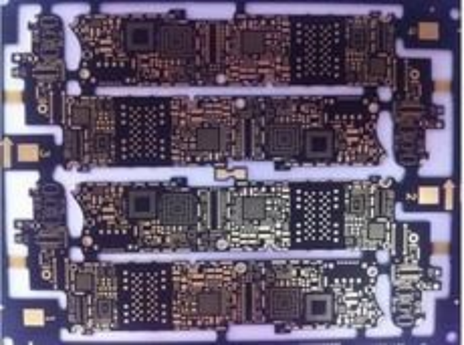

PRODUCT DETAILS
| Layer | 6L |
| Finished Thickness(mm) | 1.6 |
| Material type | KB 6165G |
| Copper thickness(oz) | All 1/1 |
| Minimum aperture (mm) | 0.2 |
| Minimum line width/line spacing (mm) | 0.1 |
| Other characteristics | Halogen-free material |
